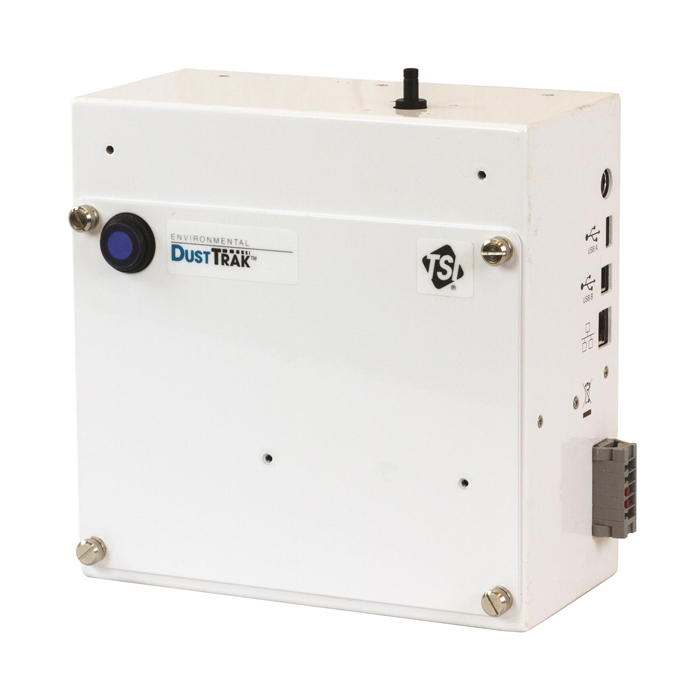

DustTrak Environmental Monitor 8543

SKU: 8543Simultaneously measure PM1, PM2.5, Respirable, PM10, and total PM size fractions. DustTrak Environmental Monitor 8543 is a data-logging, light-scattering laser photometer that enables simultaneous real-time aerosol mass readings of particulate matter. DustTrak air monitors use a sheath air system that isolates the aerosol in the optics chamber to keep the optics clean for improved reliability and low maintenance. The DustTrak Environmental Monitor 8543 is on the South Coast AQMD pre-approved list of instruments for Rule 1466.

Request a quote

Categories

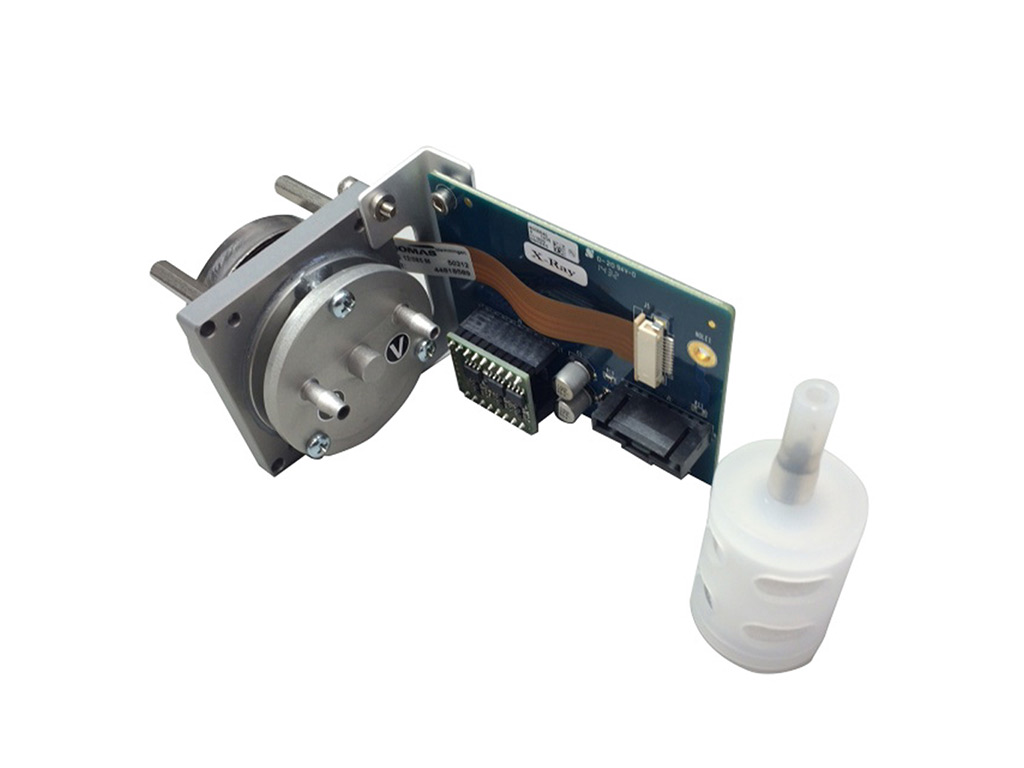

The DustTrak™ Environmental Monitor 8543 is designed for harsh outdoor settings, as well as harsh industrial workplaces, construction and environmental sites, and other outdoor applications. The robust design has an enhanced optics module, built-in auto-zero capability, and a longer life pump (>10,000 hours) which is field replaceable. The photometer measures aerosol contaminants such as dust, smoke, fumes and mists in environments from -4 to 122°F.*
*Requires internal heater option.

Applications

  • Outdoor environmental monitoring
  • Monitoring for a Community Air Monitoring Plan (CAMP)
  • Baseline trending and screening
  • Engineer control evaluations
  • Remote monitoring
  • Emissions monitoring
  • Aerosol research studies
  • Indoor air quality investigations (where an enclosure is needed)

Included Items

  • Analog alarm output
  • TrakPro™ data analysis software CD
  • DustTrak Environmental checkpoint software CD
  • USB cable
  • 37-mm cassette with mesh filter (2)
  • Operation service manual
  • Calibration certificate
  • 2-year warranty

Features and Benefits

  • Simultaneously measure aerosol concentrations corresponding to PM1, PM2.5, PM10 and total size fractions
  • STEL alarm set points
  • Automatic zeroing minimizes the effect of zero drift
  • Perform in-line gravimetric analysis for custom reference calibrations
  • Manual and programmable data logging functions
  • Aerosol concentration range 0 to 1000 ug/m³
  • Environmental protected and tamper-proof with Environmental DustTrak Enclosure

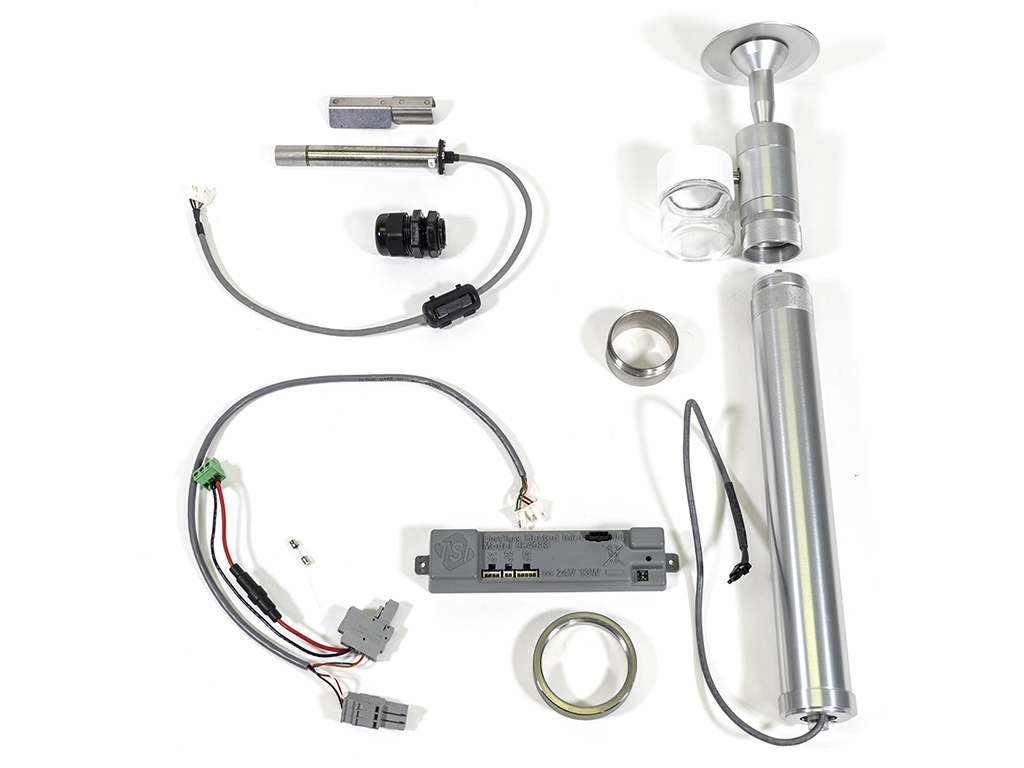

  • Heated Inlet Sample Conditioner to reduce humidity effects
  • On the South Coast AQMD pre-approved list of instruments for Rule 1466
